Mini PC Fanless RS232 RS485 Com LPT Port 8th Gen i5 8250U 8350U Industrial Desktop Computer PC
Mini PC Fanless RS232 RS485 Com LPT Port 8th Gen i5 8250U 8350U Industrial Desktop Computer PC
Regular price
$917.72 USD
Regular price
$0.00 USD
Sale price
$917.72 USD
Unit price
per
Couldn't load pickup availability
VR
Product Description
Details Images
|
Processor
|
||
|
CPU
|
Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)
Core i5-8350U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.70 GHz Turbo Frequency 3.60 GHz)
|
|
|
TDP
|
15W
|
|
|
CPU Lithography
|
14 nm
|
|
|
Memory Specifications
|
||
|
Max Memory Size
|
64GB
|
|
|
Memory Types
|
260 pin DDR4 SO-DIMMs
|
|
|
Memory Channels
|
Dual Channels
|
|
|
ECC Memory
|
Don’t support
|
|
|
Storage Specification
|
||
|
m.2 SSD
|
1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)
|
|
|
SATA
|
1 x SATA3.0 for 2.5 inch HDD/SSD
|
|
|
mSATA
|
1 x mSATA slot
|
|
|
Graphics
|
||
|
Processor Graphics
|
UHD Graphics 620
|
|
|
HD-MI
|
1 x HD-MI 2.0 (4K)
|
|
|
DP Port
|
1 x DP+1 x EDP
|
|
|
Power Specification
|
||
|
Power Adapter
|
12V Power Input, supply 12V 5A power adapter within the package
|
|
|
Auto Power On
|
Support Auto Power On Function
|
|
|

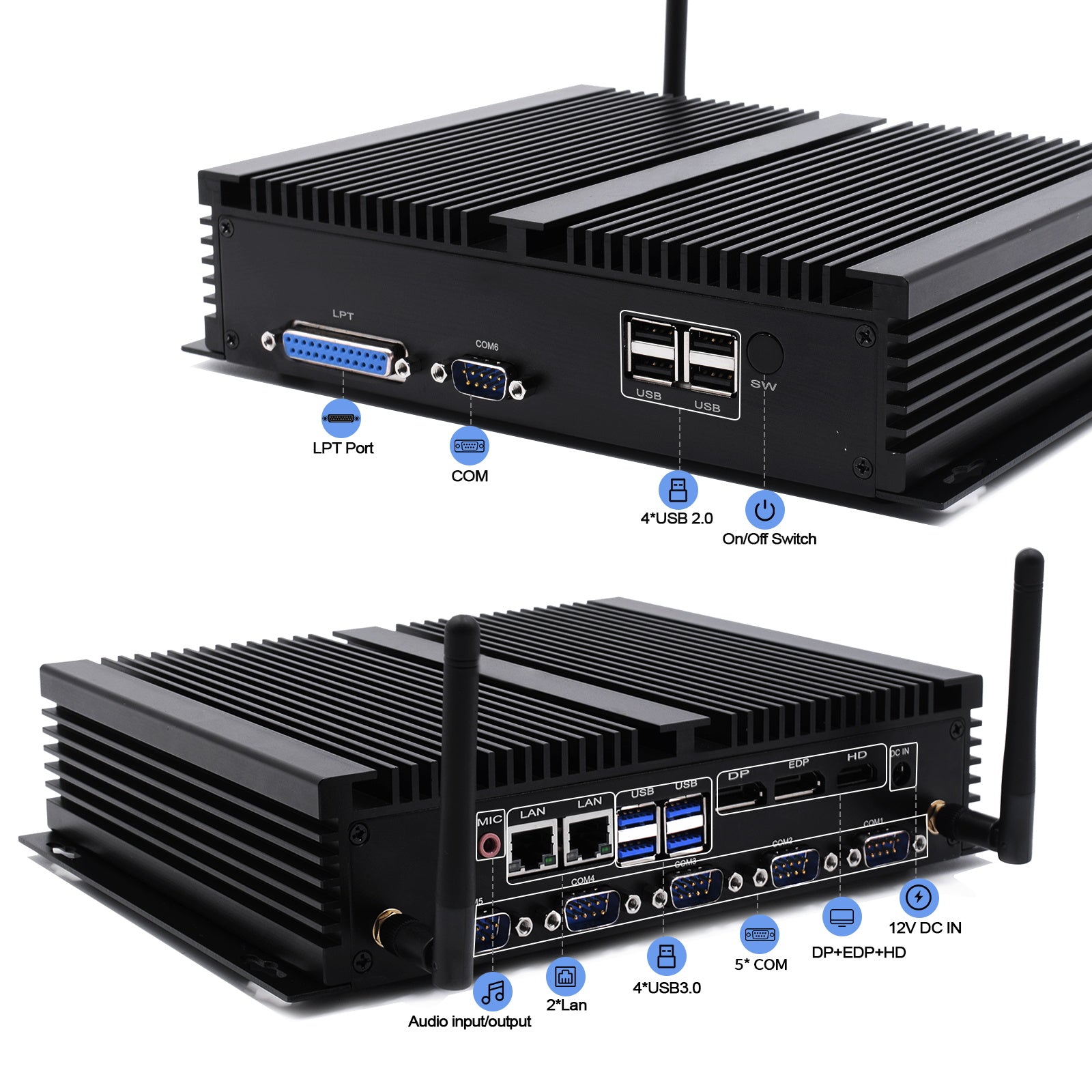

In & Out interfaces
|
||
|
USB Port
|
4 x USB 3.1 port, 4 x USB 2.0 port
|
|
|
Audio
|
3.5mm 1 Jack, MIC in/ Line out
|
|
|
Video
|

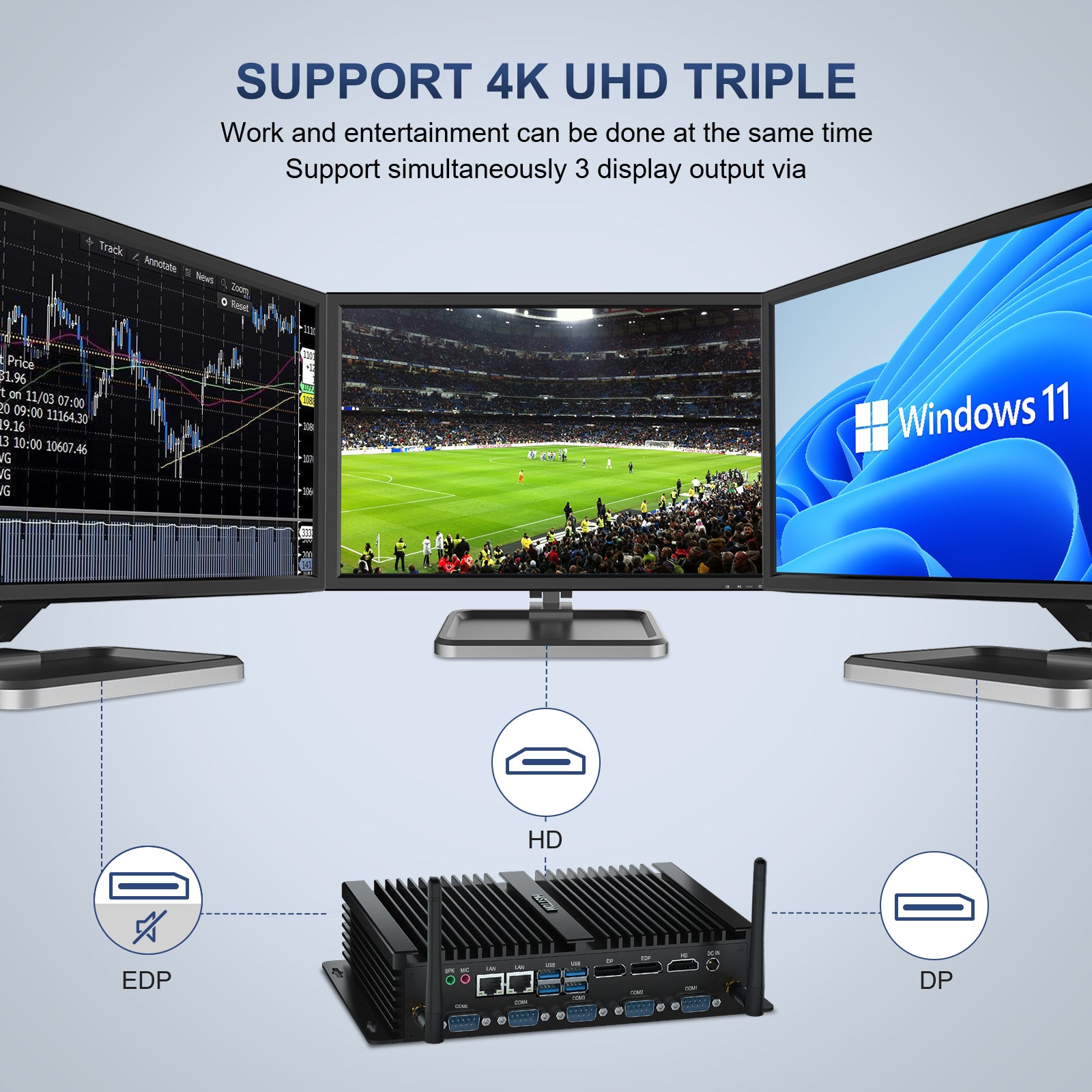

HD-MI+DP+EDP, support 3 Synchronized displays
|
|
|
Power Input
|
5.5mm 12V In
|
|
|
Lan Port
|
2 x -I210/I211 Gigabit RJ45 Lan
|
|
|
Com Port
|
4 x RS232 Com port ,2xRS485 Com port
|
|
|
Others
|
||
|
System
|
Support Windows 7/10, Linux
|
|
|

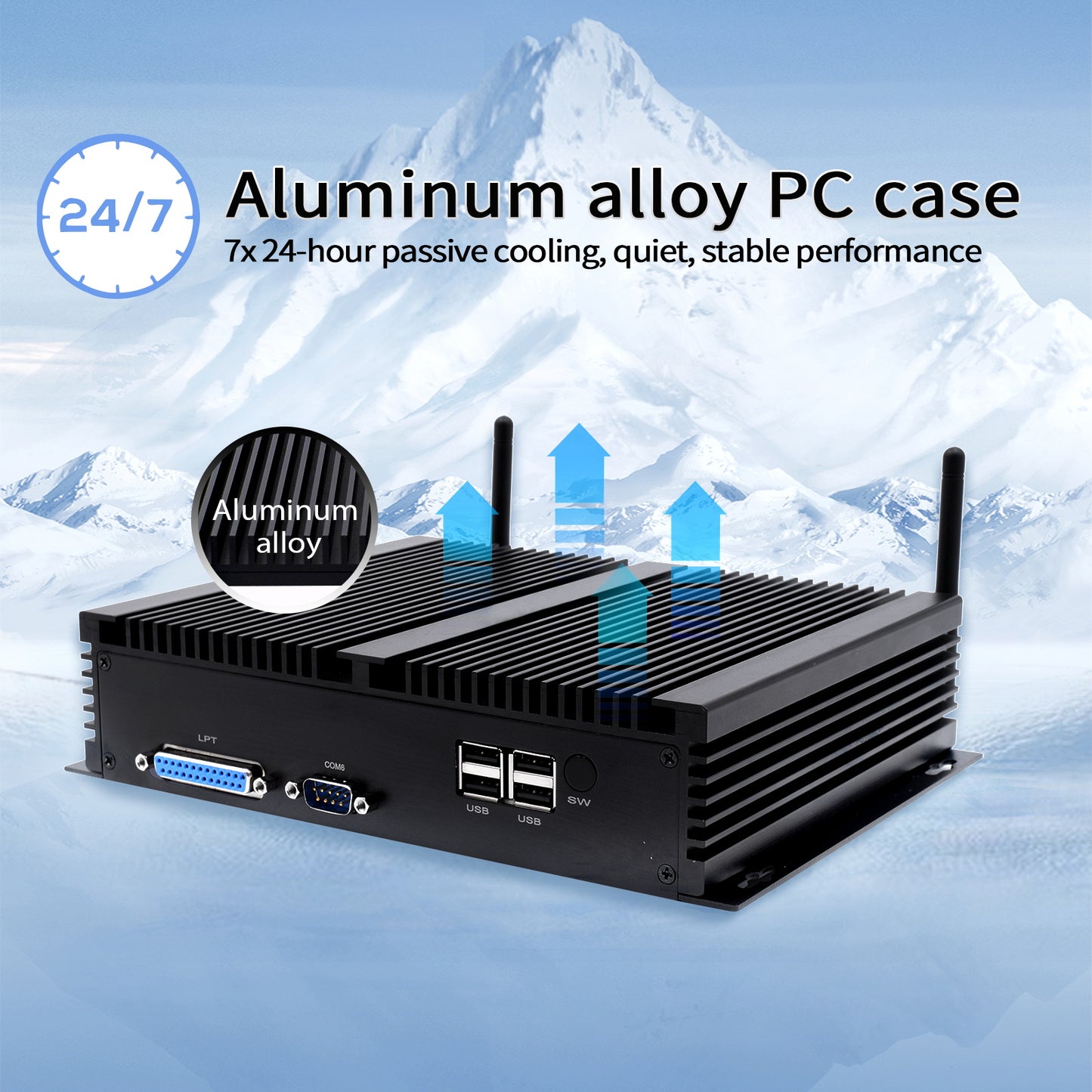

Case Material
|
Aluminium Alloy
|
|
|
Dimension
|
Mini PC size 237x175x53mm
Package size 320x260x80mm |
|
|
Weight
|
Gross weight 2.8 kg
|
|
